TECHNICAL DETAILS
– Beam Dimensions: 75×25 mm (A3, A4, A5)
– Beam Dimensions: 100×25 mm (A6)
– Square Rung Profile: 30×30 mm
– Maximum Load Capacity: 150 Kg.
– Platform 15 mm plywood with non-slip surface resistant to external factors.
– Platform Size : 34×49 cm.
![]() |
![]() |
![]() |
![]() |
![]() |
||
(m.) | (m.) | (m.)* | (kg.) | (WxLxH/cm.) | ||

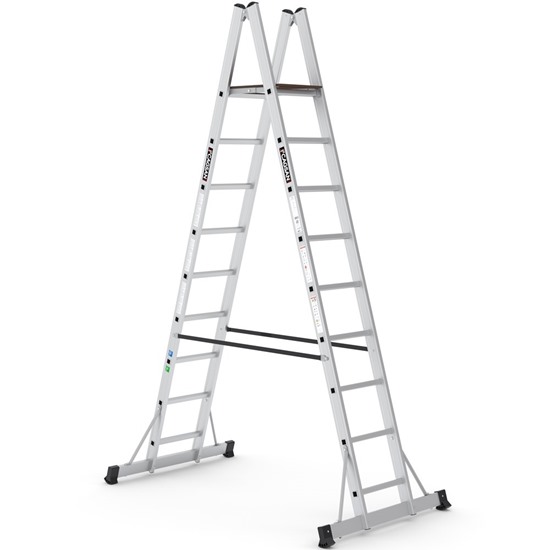

A3 | 8+1 | 2,98 | 2,40 | 3,8 | 18,2 | 41x298x22,8 |

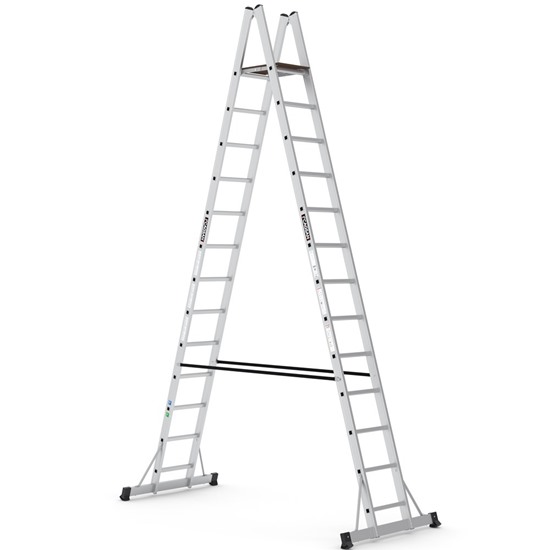

A4 | 12+1 | 4,10 | 3,47 | 4,9 | 23,0 | 41x410x 22,8 |

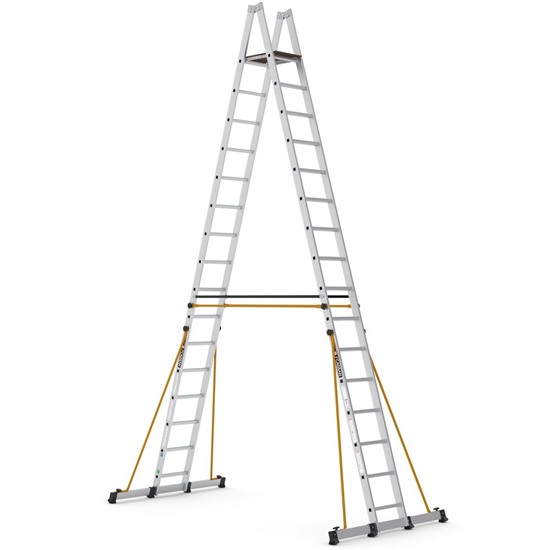

A5 | 15+1 | 4,94 | 4,27 | 5,7 | 35,6 | 41x494x 22,8 |

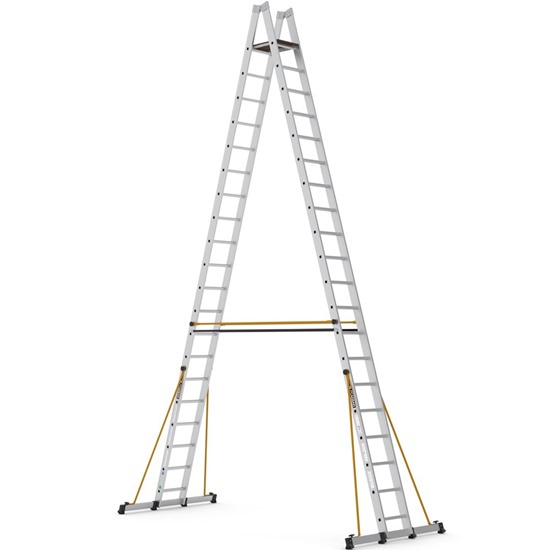

A6 | 19+1 | 6,04 | 5,36 | 6,8 | 48,4 | 41x604x24,1 |
